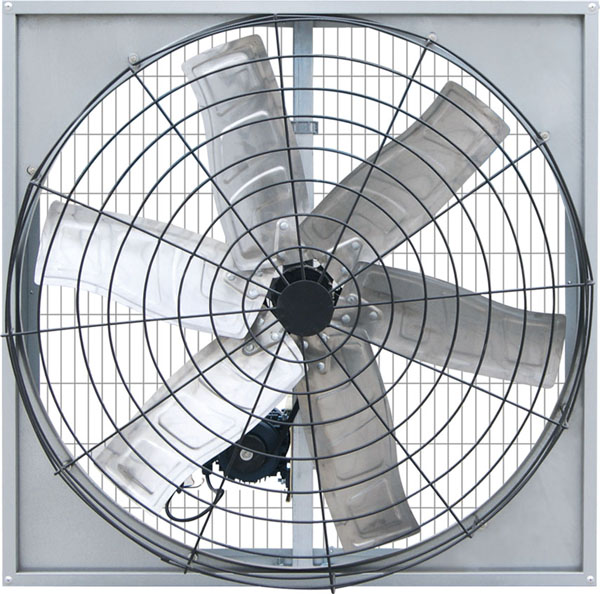

Belt type cowshed fan

name:Belt type cowshed fan

brand:tianhui

price:据实

specifications:商谈

time:2017-2-22 15:37:11


Key words: cowshed fan
JFD-710/900/1000/1100/1250/1400NP cowshed fan
Product recommendation
JFD-NP series cowshed fans manufactured by our company have passed the testing of the Agricultural Engineering Laboratory of the Ministry of Agriculture of China and Shandong Agricultural Machinery Testing and Appraisal Station, and obtained the CE safety certificate of the European Union, which is a product of stable quality in China.
Product characteristics
_Frame: The outer frame is manufactured by NC automatic processing technology. The fan adopts advanced CAD design, and the galvanized layer is thicker. It has strong corrosion resistance and durability. Beautiful appearance, light weight and easy installation.
_Protection network: Enhanced positive air supply protection network, effectively protect the fan blades, safe and firm.
Bearing: The fan adopts imported bearings, high-quality stainless steel fan blades, aviation aluminum magnesium metal hub, high-efficiency energy-saving motor.
Hand-held: Hand-held design, more convenient to carry.
_Motor; V-belt drive, equipped with high-efficiency energy-saving motor, national standard, through 3C certification, protection level: IP54, insulation level: F.
_Belt: Imported B-type belt, not deformed, long service life; free from maintenance throughout the service life.
_Detection: Six strict quality detection procedures: noise detection, vibration detection, rotating concentric performance detection, wind blade speed detection, wind volume detection, efficiency detection of the whole machine.
Product application
This product is widely used in cowshed with good cooling effect and strong ventilation and ventilation ability.
Technical parameters of belt cowshed fan:

Model

Fan blade diameter

mm

Fan speedr/min

Motor speed

r/min

Air volume

m3/h

noise

db

power

W

Voltage

V

High*width*thickness

mm

JFD-750NPBelt type

750

738

≥1400

18000

≤70

550

380

900*900*500

JFD-900NPBelt type

900

560

≥1400

32000

≤64

550

380

1000*1000*500

JFD-1000NPBelt type

1000

560

≥1400

35000

≤64

750

380

1120*1120*500

JFD-1100NPBelt type

1100

505

≥1400

40000

≤64

750

380

1220*1220*500

JFD-1250NPBelt type

1250

420

≥1400

43000

≤64

1100

380

1380*1380*500

JFD-1400NPBelt type

1400

420

≥1400

55000

≤64

1500

308

1530*1530*500
