Wet curtain core

name:Wet curtain core

brand:tianhui

price:据实

specifications:商谈

time:2017-2-22 17:05:02


Wet curtain core


Key word:
Tianhui wet curtain is made of a new generation of macromolecule material and space crosslinking technology. It has the advantages of high water absorption, high water resistance, fast diffusion, mildew resistance, high cooling efficiency and long service life. It is suitable for adjusting indoor humidity.
_Evaporation has a large specific surface area and excellent permeability, which can ensure that water evenly penetrates the whole wet curtain wall.
_No surfactant, natural water absorption, fast diffusion, long-term effectiveness.
_High water absorption, natural water absorption of 60-70 mm/5 min
_Corrugated paper has high structural strength, no distortion and durability after special treatment.

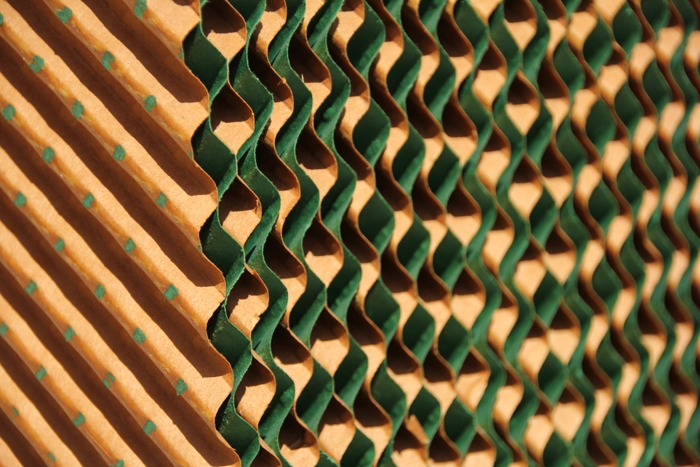

_The specific three-dimensional space structure provides the maximum evaporation surface area for the heat exchange between water and air.
_Tianhui wet curtain also has ventilation, ventilation and corrosion resistance, and has excellent filtering effect on dirt in the air. It is a non-toxic, odorless, clean, humidifying and oxygen cooling environmental protection material, so it is also used as a medium for air purification and filtering.
_Tianhui wet curtain is easy to install, non-toxic and harmless to human body, green, safe, energy-saving, environmental protection and economy.
Three kinds of corrugated specifications 50/90, 60/90, 70/90 optional size can be customized according to customer requirements.
Outer frame material: aluminium alloy, galvanized sheet, stainless steel, plastic steel.

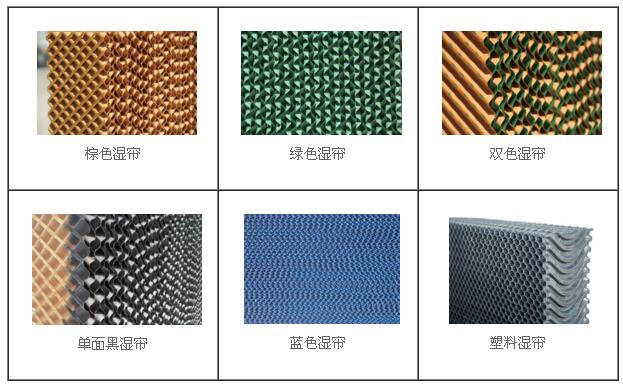

Diagram of wet curtain paper cores of various colors:

TH series wet curtain compressive strength:
Dry: The compressive strength of thickness is 750N, and the compressive strength of height is 1000N.
Wet: The compressive strength of thickness is 600N, and the compressive strength of height is 980N.

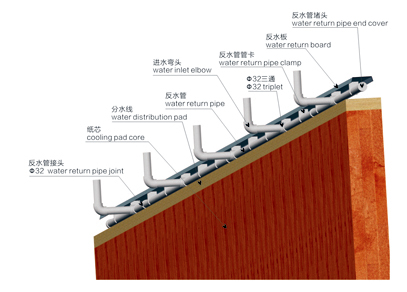

Outer frame water curtain installation schematic diagram:
